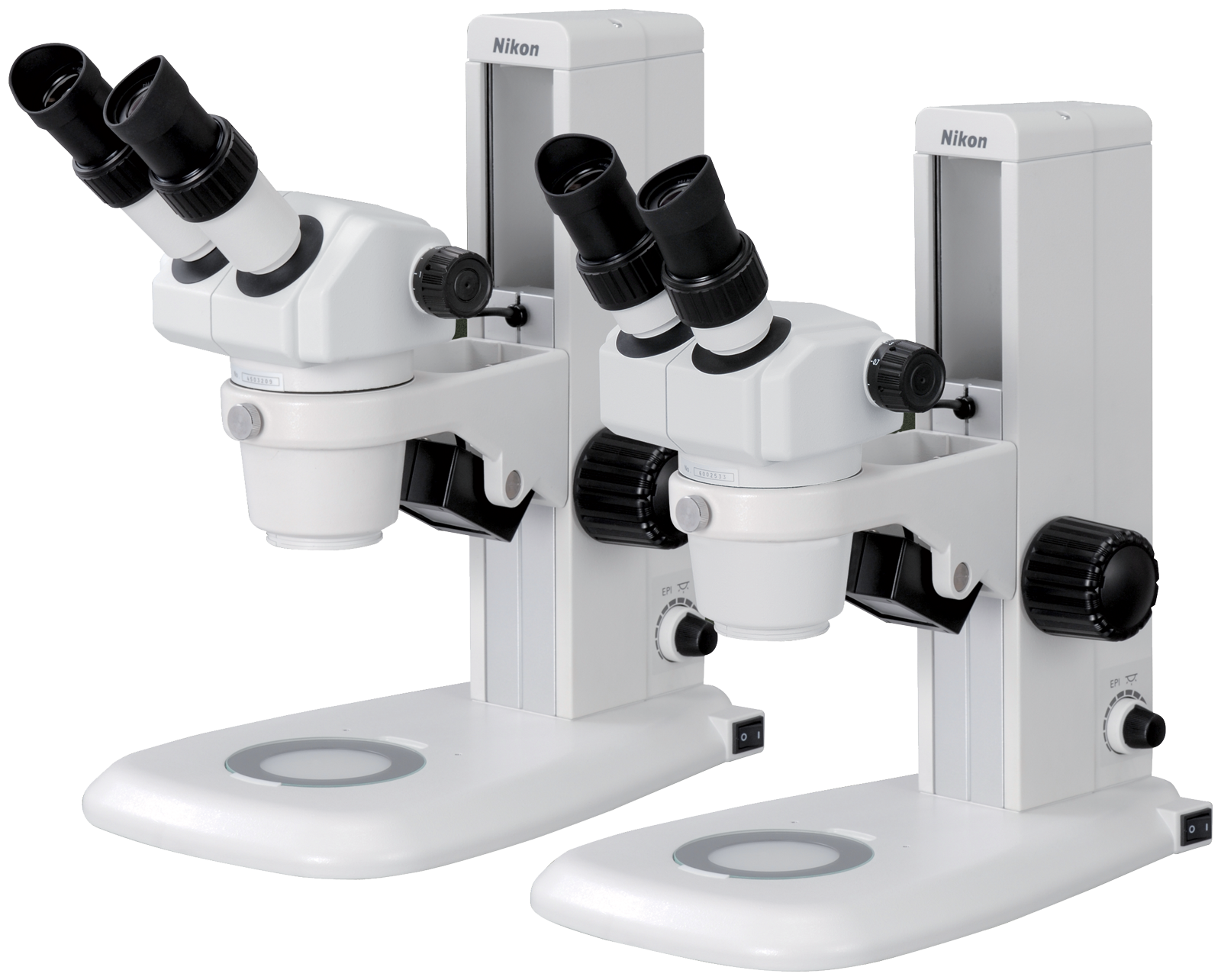

Nikon SMZ445 -Stereo Microscope

Nikon SMZ445 -Stereo Microscope

Premium performance in a compact body.

The SMZ445 and SMZ460 deliver the outstanding optical performance you expect from Nikon’s cutting-edge series of stereoscopic zoom microscopes. Porro prisms enable a lightweight, compact design. With 0.8x – 3.5x zoom magnification (SMZ445) and 0.7x – 3.0x zoom magnification (SMZ460), and diascopic/episcopic LED Stand, the SMZ445 and SMZ460 let you observe a wide range of specimens, from Petri dishes to plants, insects, small animals and minerals.

     Key Features

  • Outstanding Optical Performance

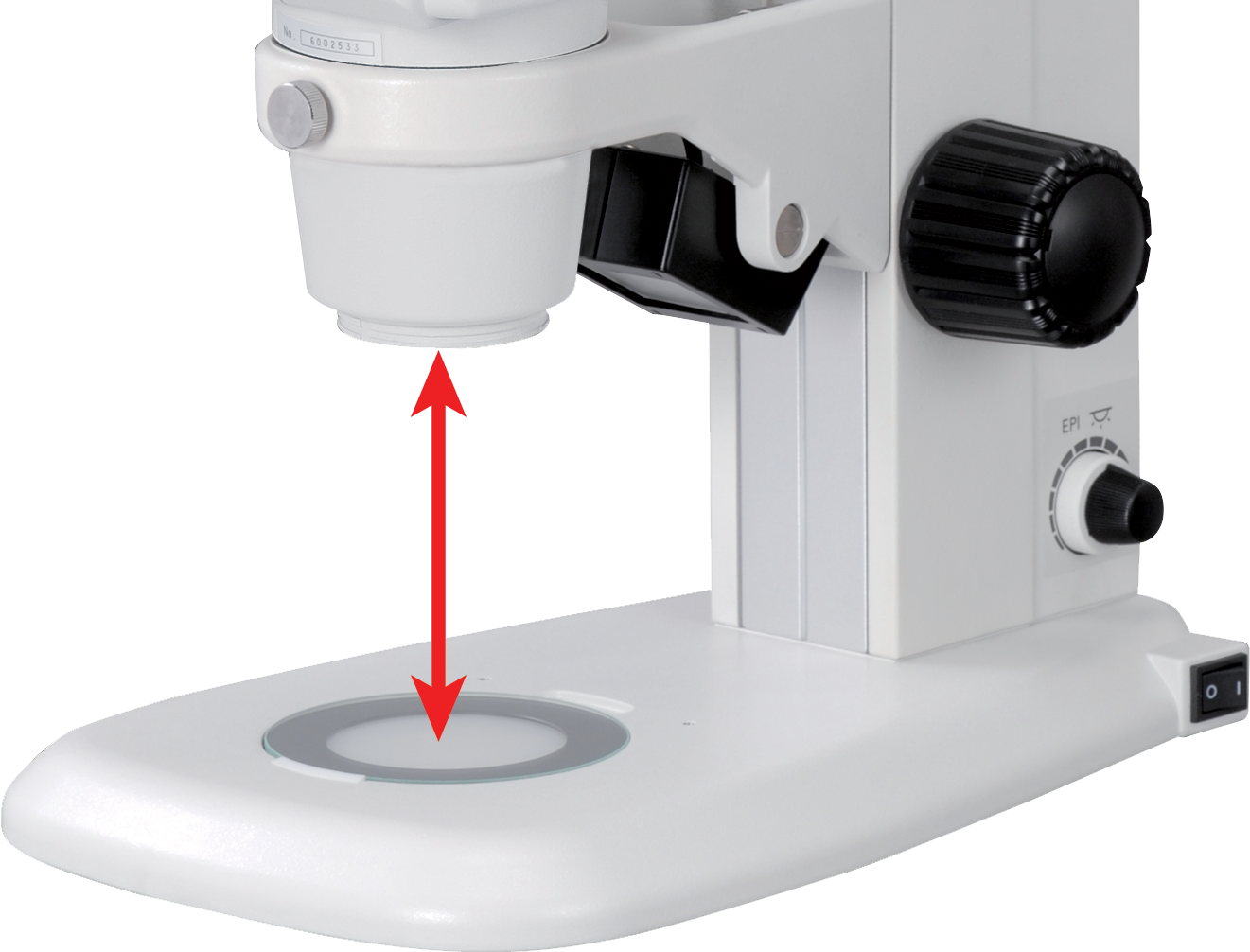

  • Long Working Distances
  • Mold-Resistant Finish
  • LED Stand with All-In-One Design

    Application Area

  • Research
  • Biotech
  • Education
  • Material Science
Category Brand:

Specifications

SMZ445 SMZ460
Type: Twin zooming objective optical system
Total magnification: 8x ~ 35x (4x ~ 70x by replacing eyepiece and/or auxiliary objective lens) 7x ~ 30x (3.5x ~ 60x by replacing eyepiece and/or auxiliary objective lens)
Eyepiece: SM 10xB eyepieces (F.N. 21), SM 15xB eyepieces (F.N.14), SM 20xB eyepieces (F.N. 12)
Zoom range: 0.8x ~ 3.5x (Zoom ratio: 4.4:1) 0.7x ~ 3x (Zoom ratio: 4.3:1)
Auxiliary objective lens: AL0.5x, 0.7x (optional)
Working distance: 100mm (standard configuration), 127.5mm (AL0.7x), 181mm (AL0.5x)
Eyepiece inclination: 45º 60º
Optical system: True erect image, 12º inner bevel, independent adjustment of right and left eyepieces, and 54 to 75mm interpupillary adjustment
Weight (Zooming body): Approx. 1.0kg Approx. 1.1kg
