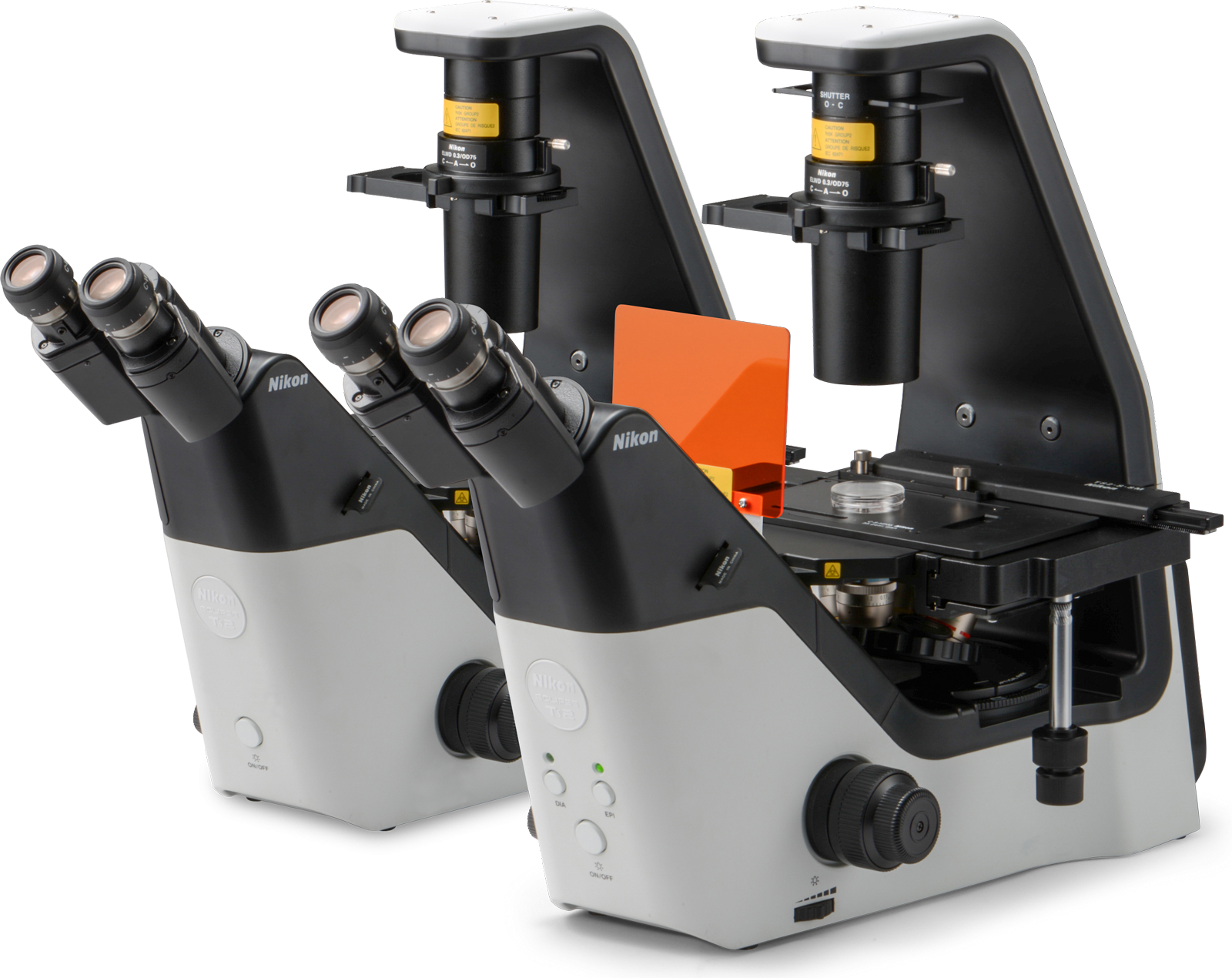

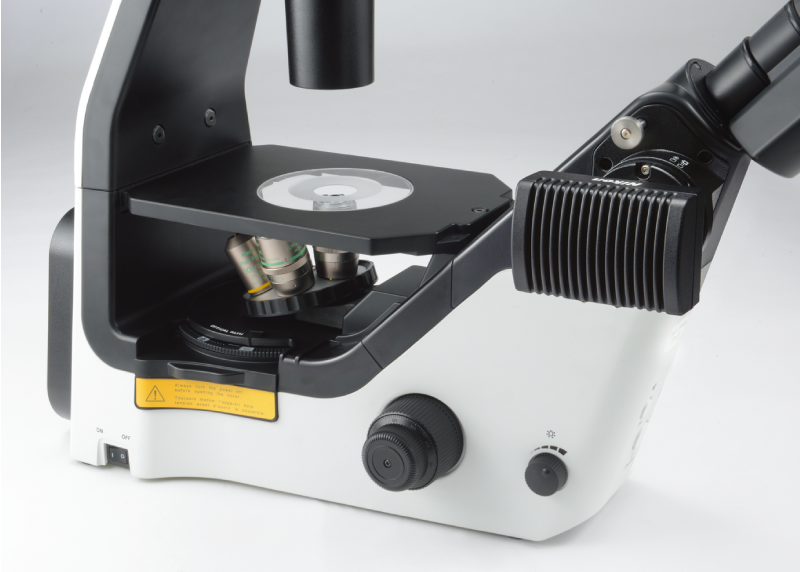

Nikon Eclipse Inverted Microscope -TS2 /TS2-FL

Fits in Every Laboratory — Simple to Use & Compact

Utilizing Nikon’s industry-leading CFI60 optical system and LED illumination for both Diascopic and Epi-fluorescence imaging, the ECLIPSE Ts2 inverted microscope offers brilliantly clear images, enabling more efficient cell culture observation and documentation. Furthermore, a newly developed contrast observation method and improved operability enhances its use for routine laboratory work.

Key Features

Efficient and comfortable observation
Faster, brighter images with LED illumination
LED-based high-quality Diascopic and Epi-fluorescence observation
Emboss Contrast – Contrasting Technique
Streamlined Operation
Easy-to-use Mechanical Stage
Compact and highly stable body

Specifications

	Ts2	Ts2-FL
Optical System	CFI60 Infinity Optical System
Observation method	Brightfield, Apodized Phase Contrast1, Phase Contrast, Emboss Contrast2	Brightfield, Apodized Phase Contrast1, Phase Contrast, Emboss Contrast2, Epi-Fluorescence
Diascopic illumination	High luminescent white LED illuminator (Eco-illumination), Built-in Fly eye lens
Episcopic illumination	—	LED illuminator, built-in Fly eye lens Can be configured with upto 3 different fluorescence LED units; available wavelengths: 385, 455, 470, 505, 525, 560, 590, 625 nm
Tube	Ts2 and Ts2-FL: Inclination: 45 degree; Pupillary distance: 50-75 mm, Siedentopf type; Attachable camera port; Eyepiece/Port:100/0:0/100
Eyepiece (F.O.V.)	10X (22) , 15X (16), 20X (12.5)
Focusing	Via nosepiece up/down movement, Stroke (manual): Up 7 mm down 1.5 mm Coarse stroke: 37.7 mm per rotation, Fine stroke: 0.2 mm per rotation, Coarse motion torque adjustable
Nosepiece	Quintuple nosepiece
Condenser	ELWD Condenser (NA 0.3、W.D. 75 mm)
Slider	Precentered or Centering PH Slider, 10X, 20X, 40X objectives available for Phase Contrast Emboss Contrast sliders (both condenser-side slider and eyepiece-tube-side slider must be mounted), 10X, 20X, 40X objectives available for Emboss Contrast
Stage	Plain Stage, stage size: 170 (X) x 247 (Y) mm With Acrylic Type of Stage Ring Mechanical stage (optional), stroke：126 (X) x78 (Y) mm Accepts 5 types of micro-testplate, well clamper and stage clip
Holder	C-S-HP35 Petridish Holder 35 mm C-S-HLP100 Petridish Holder 100 mm C-S-HT Terasaki Holder for Terasaki plate and φ65 dish C-S-HS Slide Glass Holder for glass slides, φ54 dish and hemocytometer C-S-HU Universal Holder for Terasaki plate, glass slide, φ35-65 dish and hemocytometer C-S-HG Glass Ring Holder C-S HLS Ring Holder Set
Epi Fluorescence attachment	—	Epi-fluorescence filter turret (with main body) Filter cubes with noise terminator mechanism Configure with up to 3 Epi-fluorescence filter cubes, Additional positions for bright-field observation Attachable Contrast Shield (optional)
Dimensions	236 (W) ×548 （D) ×471 （H） mm	236 (W) ×564 （D） ×471 （H） mm
Weight (approx.)	13 kg	14.5 kg
Rated Voltage/Electric Current	100V-240VAC±10％、50/60Hz、0.35A
Power Consumption	15W
